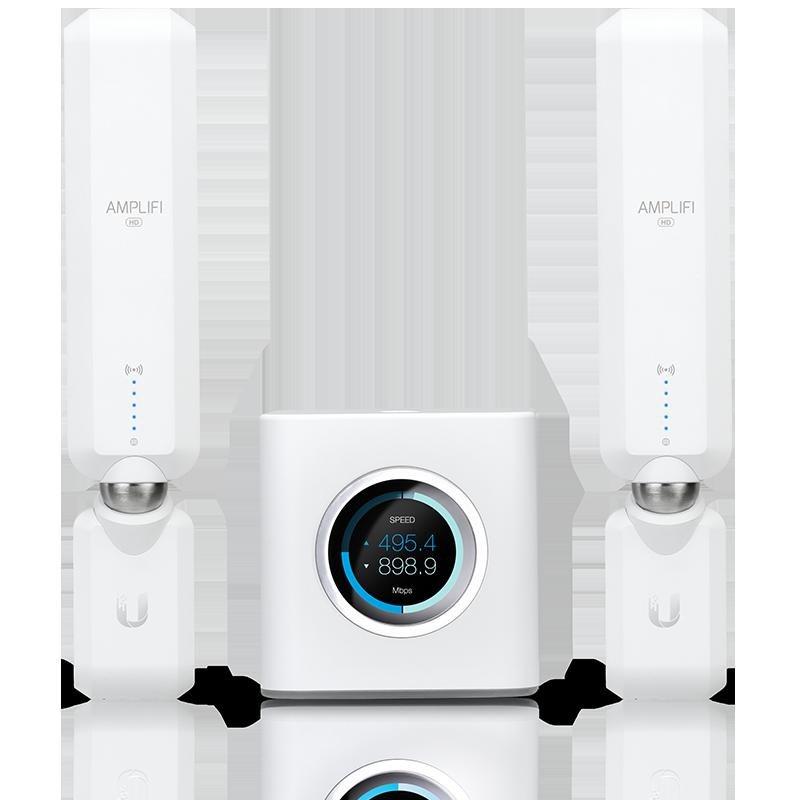

The AmpliFi™ HD (High Density) System includes a router base station and two wireless super mesh points for maximum Wi-Fi coverage throughout your home.

The HD Kit provides maximum wireless performance in an innovative and elegant design.

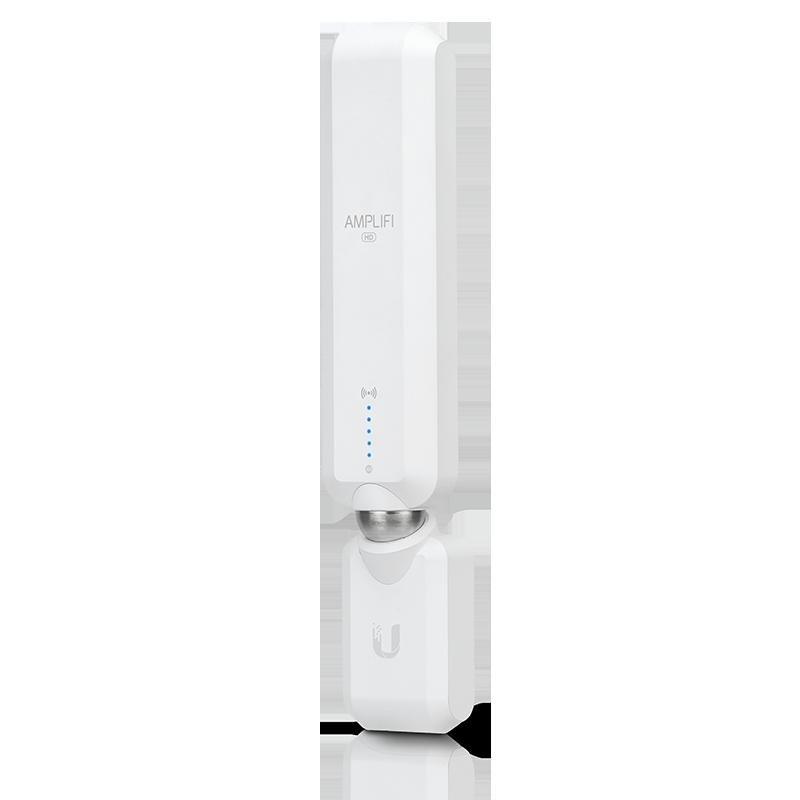

The router includes a smart LCD screen and the mesh points display wireless signal performance.

A mobile app is available for iOS and Android™ platforms for instant setup and easy management.

Home Wi-Fi Mesh Technology
AmpliFi’s multi-radio Wi-Fi system eliminates dead spots utilizing mesh point technology to provide premium, ubiquitous Wi-Fi coverage throughout your home.

Plug and Play Setup
AmpliFi’s app directly links AmpliFi devices to your smartphone via Bluetooth LE. With a simple, intuitive setup, you can manage your new network, monitor ISP speeds, invite guests, and oversee network security.

Key features:
- Powerful Antennas: Super Antenna Technology drives superior range and speed.

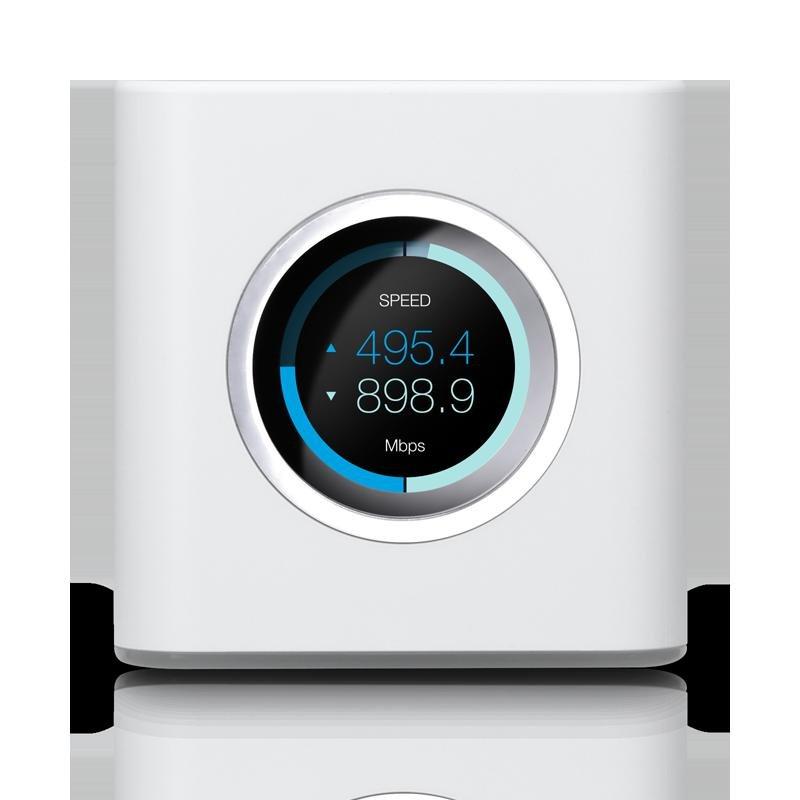

- Smart LCD Screen: Sleek, sophisticated industrial design includes a smart LCD touchscreen on the base.
- Significant Signal: Latest 802.11AC Wi-Fi technology, integrated.

AmpliFi Specifications
Max TX Power: 26 dBm
Radios: 6
MIMO Chains:18
Speed: 5.25 Gbps
Range: 20,000 sq. ft

Common Specifications

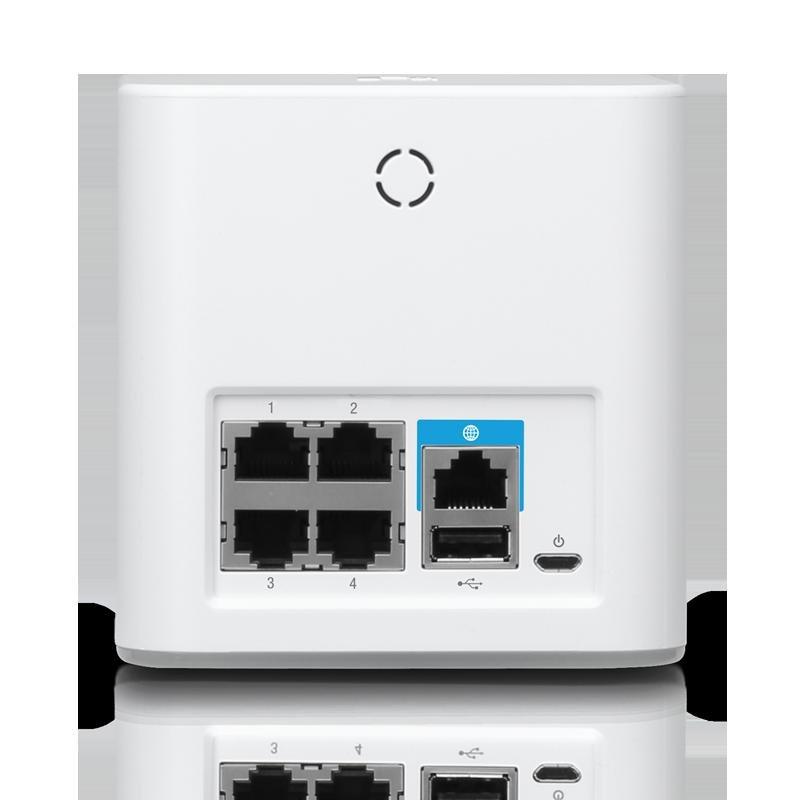

Networking Interface: Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Maximum Power Consumption: 11W
Buttons: Reset
Antennas: (3) Dual-Band Antennas
Display: 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards: 802.11b/g/a/n/ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: 14 to 131° F (-10 to 55° C)
Operating Humidity: 95% Noncondensing
Certifications: FCC / CE / IC

Supported Data Rates
802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
