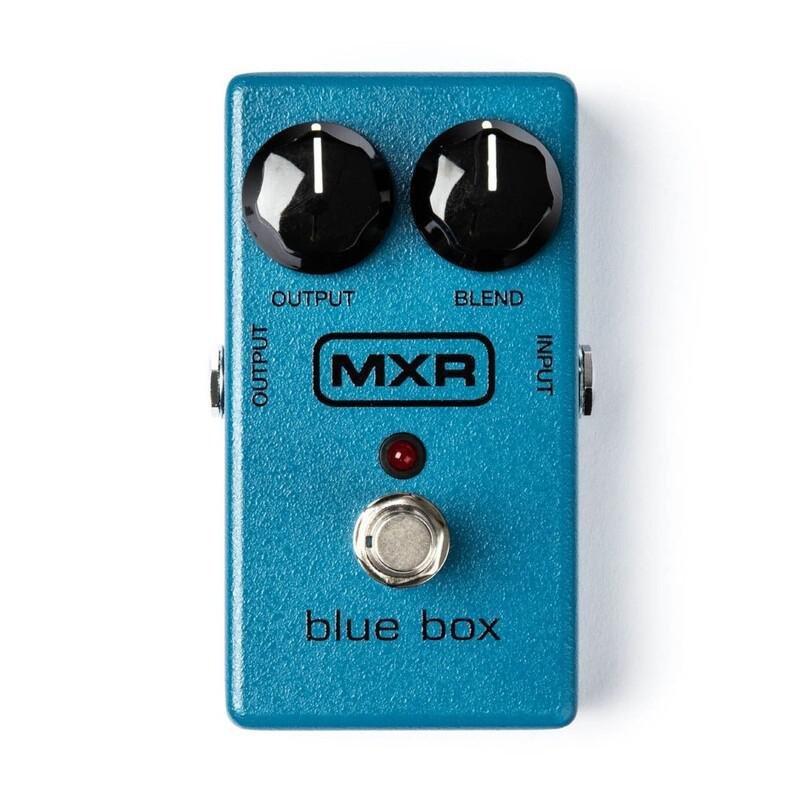

Jim Dunlop MXR Blue Box Octave Guitar Pedal
Tickit Rewards
Earn 2X Loyalty Points
Free Delivery
on all orders above 189AED
Free Returns
Within 30 Days
ID 85_117029_000
The Blue Box Octave Fuzz drops your guitar signal two octaves down and combines it with gnarly fuzz for huge subterranean tones.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).
Directions:
- Run a cable from your guitar to the Blue Box’s INPUT jack and run another cable from the Blue Box’s OUTPUT jack to your amplifier.
- Turn the OUTPUT knob clockwise to BOOST the effect’s overall volume.
- Rotate the OUTPUT knob to increase overall volume of effect or counterclockwise to decrease it.
- Rotate BLEND knob clockwise to increase amount of sub-octave fuzz or counterclockwise to decrease it.
Input Impedance 1 MΩ
Output Impedance<20 kΩ
Input Sensitivity Level -56 dBV
Nominal Input Level -22 dBV
Max Output Level -5 dBV
Noise Floor* >100 dBV
Bypass Hardwire
Current Draw
Effect On 4 mA
Effect Off 1.5 mA
Power Supply 9 volts DC
0 dBV = 1Vrms
